Carlson CRx Robotic Total Station

Name: Carlson CRx Robotic Total Station
SKU: 4837
Availability: InStock

$26,022.00 – $31,967.00

Call Us at 888-299-6996 for Available Discounts.

The Carlson CRx series of Robotic Total Stations provides a choice of 1″, 2″, 3″ and 5″ angular resolutions to match the application requirements.

The models are recognizable as the CRx-1, CRx-2, CRx-3 and CRx-5, and all feature the same technologies for a seamless user experience. The instruments are combined with SurvCE or SurvPC on a field computer to access the full range of Carlson survey features for efficiency and automation in a familiar environment. In addition, users have the option for installing SurvCE Basic on board for operation with the instrument only. Customers benefit from technical guidance and support for both the robotic total station and SurvCE or SurvPC from one company.

CRx Robotic Total Stations are used with SurvCE or SurvPC in a wide range of applications requiring precise angle and distance measurements such as surveying, engineering and construction.

Select Options

Clear

SKU: N/A Category: Carlson Field Instruments Tag: Total Station

Angle Measurements

Accuracy	1” (0.3 mgon), 2” (0.6 mgon), 3″ (1.0 mgon), 5” (1.5 mgon)
Method	Absolute, continuous, diametrical
Compensation	Quadruple axis
Display resolution	0.1” (0.1 mgon)

Telescope

Magnification

30x

Distance Measurements

Prism
Range/Accuracy/Time	Single (fast): 2 mm + 1.5 ppm / 0.8 sec Standard: 1 mm + 1.5 ppm / 2.4 sec Continuous: / 3 mm + 1.5 ppm / <0.15 sec Range: up to 3500 m
Reflectorless
Range \| Accuracy \| Time \| Precise capture	accXess5/accXess10: 500m/1000m \| 2 mm + 2 ppm* \| typ. 2-6sec \| 8×20 mm at 50 m

Motorization

Technology

Hybrid Drives

Scout

Range

300m at round prism

TRack

Range	800 m at round prism
Max speed	90 km / h at 100 m

AIM

Range	1000 m at round prism
Hz/V accuracy	1”
Technique	Image processing

NavLight™

Range	5 m at 150 m
Accuracy	5 cm at 100 m

Interface

Keyboard	One or two full alphanumeric; 25 keys; illuminated (2nd optional)
Display	5″ WVGA 800 x 480 color and touch with LED backlight
Data recording	2 GB internal memory; removable SD card and USB stick
Ports	Serial; USB; internal Bluetooth; long- range Bluetooth handle and external power
Operating system	Microsoft Windows EC 7

Plummet

Type	Laser point, adjustable brightness
Accuracy	1.5 mm at 1.5 m instrument height

Physical Specifications

Weight	5.0 – 5.3 kg (w/o battery and tribrach)
Operating / storage temperature	–20°C to 50°C / -40°C to +70°C
Protection class	IP55 dust and waterproof rating
Humidity	95%, non-condensing

Power Supply

Internal battery	Removable Li-Ion 4.4 Ah / 7.4 V
Operating time	Up to 8h**

* > 500 m: 4 mm + 2 ppm; ** Single measurement every 30 second at 25° C. Battery time may be shorter depending on conditions.
Distance meter (reflector mode): Laser class 1 in accordance with IEC 60825-1 resp. EN 60825-1; Laser plummet: Laser class 2 in accordance with IEC 60825-1 resp. EN 60825-1; Distance meter (reflectorless mode): Laser class 3R in accordance with IEC 60825-1 resp. EN 60825-1.

Carlson CRx Robotic Total Station

STANDARD ACCESSORIES:

ZRT82 LRBT Radio Handle
ZBA400, Li-Ion Battery 4.4Ah, rechargeable
ZTR101 Tribrach without optical plummet
ZCH201 Charger for ZBA200 & ZBA400
ZDC301 USB Cable

Carlson CRx Brochure

Description

Product Description:

Advanced Technology
With a 5” touch screen, a more powerful processor for large files, automatic data backup, and the advanced positioning technology of STReAM360, Carlson’s super-reliable CRx robotic total stations provide the most efficient way to survey.

Made for Carlson SurvCE and SurvPC
Designed to work flawlessly with SurvCE and SurvPC data collection software, the Carlson CRx series robotic total stations are quick to set up, and are packed with easy-to-use functions that simplify your surveying workflows and provide powerful tools to make you more efficient and more accurate.

X-MOTION™ Hybrid Drives
Scout: Quickly search for passive prisms
Full Connectivity
Robust, field-proven package
accXess™ EDM Technology
1”, 2”, 3”, and 5” options

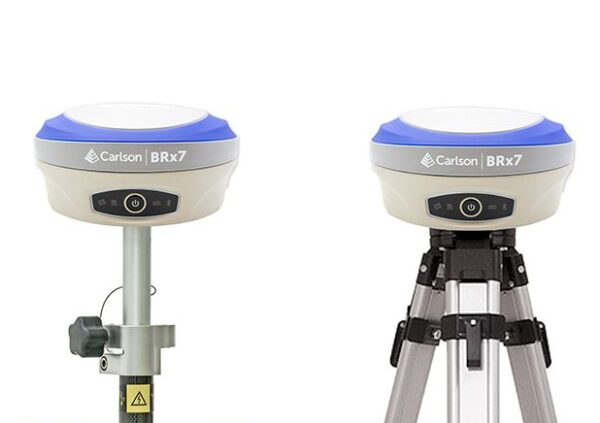

The CRx Series is also ready for use with the Hybrid+ module for Carlson’s SurvCE or SurvPC field software, which allows the use of your CRx simultaneously with a GNSS receiver such as the Carlson BRx7 to increase your efficiency and accuracy in the field.
