Carlson Washington DC 5″ Windows 10 Field Data Collector
Price range: $5,995.00 through $9,995.00
Call us at 888-299-6996 for a quote.
The Carlson Washington Data Collector is a powerful, rugged, keyboard-equipped data collector designed for working in difficult environments. With available on-board survey-grade GNSS and running Windows 10 IOT, the Washington is built to run Carlson’s full-featured field software, SurvPC.
It brings modern high performance to a rugged, ergonomic form factor with a physical keyboard. Whether connected to a robotic total station such as the Carlson CRx, a GNSS receiver such as the Carlson Viking or BRx7, or using the Washington’s own survey-grade internal GNSS, users can enjoy advanced connectivity and total freedom in the field.
Entirely developed by Carlson, the Washington is built in Maysville, Kentucky for North American markets and in York, England for international markets.
PROCESSOR & MEMORY
• Intel® Atom™ x7-E3950, 4x 1.6 GHz, 2MB L2 Cache
• 8 GB DDR3L RAM
OPERATING SYSTEM & SOFTWARE
• Windows 10 IOT Enterprise LTSC
• Language Support (English, French, Spanish, Portuguese, and
many more)
• Adobe Reader®
MEMORY AND DATA STORAGE
• 32 GB eMMC Flash
• 256 GB SSD
DISPLAY & TOUCHSCREEN
• 5” Active Viewing Area
• 720 x 1920 Landscape TFT-LCD
• Projected Capacitive Touch Interface
• Scratch Resistant, Chemically Toughened Touch Screen
KEYBOARD
• Full Numeric and QWERTY keypad
• Adjustable backlit keys
• Dedicated Carlson Launch Key
• Programmable function keys
PORTS
• USB A
• RS-232C 9 pin D Connector
BATTERY
• Hot Swappable 49 Wh
• Internal 28.12 Wh battery
• 7 hours of use on a single charge
• Charges in less than 1 hour
• Charging dock included
PHYSICAL
• 2.4 lbs, (1.1 kg) without swappable battery

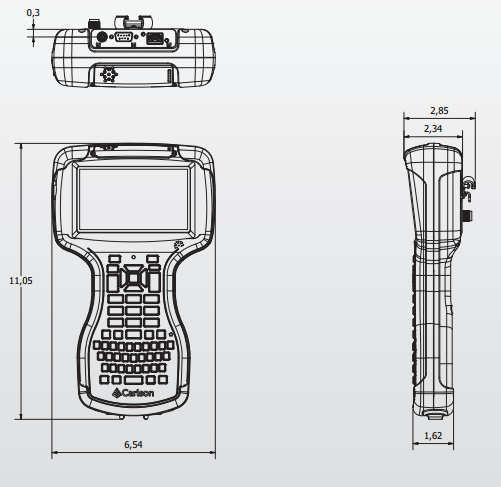

• 11 x 6.3 x 2 in (280 x 160 x 50 mm) (H x W x D)
• Durable hardened plastic in a shear proof shock resistant
design
• Strong chemical resistance
• Shock absorbing bumpers
ENVIRONMENTAL
• IP65 waterproof and dustproof
• Operating Temp: -4°F to 113° F (-20° C to 45° C)
• Storage Temp: -4° F to 140° F (-20° C to 60° C)
• Shockproof: multiple drops from 1 m onto concrete
CONNECTIVITY
• Long Range Bluetooth® v2.0 + EDR wireless technology
• Bluetooth® v5.1
• Wi-Fi Certified 6™ 802.11a/b/g/n/ac
• 4G Cellular Modem Worldwide Frequencies
CAMERA
• 13MP resolution with Autofocus
• Full HD (1080p) @ 60fps
GNSS†
• Multi-Frequency
• Multi-Constellation (GPS + GLONASS + Galileo + BeiDou +
QZSS)
• RTK1,2
– Horizontal accuracy: 0.008 m + 1 ppm
– Vertical accuracy: 0.011 m + 1 ppm
• Update rate up to 5 Hz
• Convergence time: < 10 sec
• Initialization times:
-Cold starts 24 s
-Reacquisition 2 s
CERTIFICATIONS & STANDARDS
• FCC Class B
• Industry Canada
• EN60950 Safety
STANDARD ACCESSORIES
• Spare 49 Wh battery
• Battery charger
• AC Wall charger
• Stylus
• Charging dock
† GAMA RTK is an optional feature enabled at an additional cost
1 Depends on multipath environment, number of satellites in view, satellite
geometry, and ionospheric activity
2 Depends also on baseline length
Carlson products are constantly being improved, and all specifications are
subject to change without notice
Carlson Washington DC 5″ Windows 10 Field Data Collector
STANDARD ACCESSORIES
• Spare 49 Wh battery
• Battery charger
• AC Wall charger
• Stylus
• Charging dock
Description
Product Description:
With the optional GNSS package, the Washington features Carlson’s Gama RTK Navigation engine, allowing centimeter-level accuracy with the addition of pole-mounted antenna.
Each of the two long-life 49 Wh lithium batteries included with every Washington provide seven hours of use. The hotswappable design allows you to replace batteries without interrupting your workflow, and the included battery charging dock allows easy charging.
Additional information
| Select Options | Carlson Washington DC 5" Data Collector, Carlson Washington DC 5" Data Collector with SurvPC Basic Total Station Module, Carlson Washington DC 5" Data Collector with SurvPC GPS Module Only, Carlson Washington DC 5" GNSS Data Collector w\GAMA, Pole & Antenna w/ SurvPC GPS Only |
|---|
