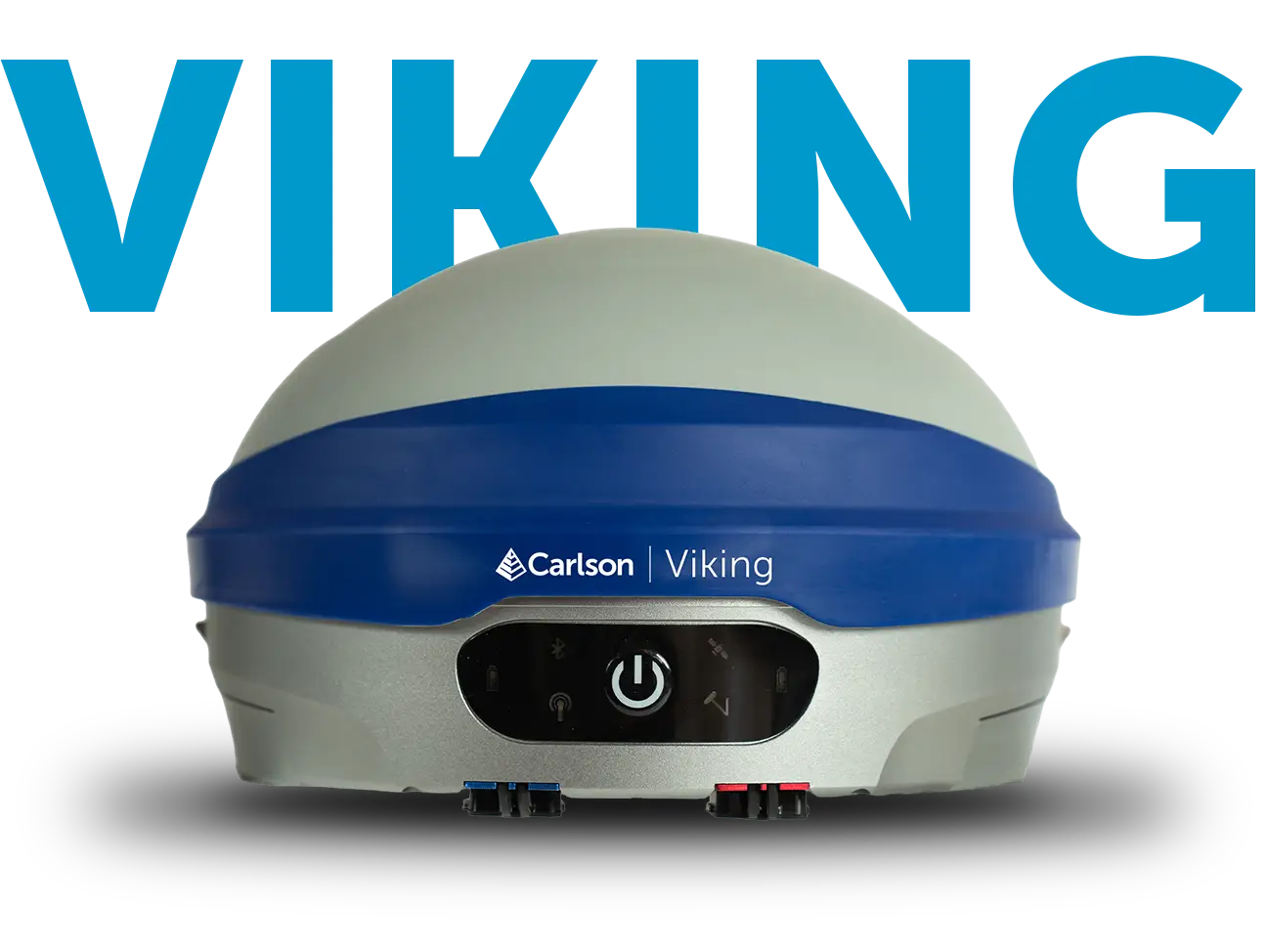

Carlson Viking GNSS Receiver

Name: Carlson Viking GNSS Receiver
SKU: 5175
Availability: InStock

Price range: $15,995.00 through $31,995.00

Call Us at 888-299-6996 for Available Trade-in Offers

The all-new American-made Carlson Viking GNSS receiver with TRIPLE-FIX technology is the ultimate solution for precision positioning in difficult environments. Used as either a base or a rover, the Viking system features a best-in-class GNSS antenna element and an integrated IMU offering centimeter-level accuracy, heightened flexibility, durability, and self-calibrating tilt compensation.

Options

Clear

SKU: N/A Category: Carlson Field Instruments Tags: GNSS, GPS

Specifications

Dual GNSS RTK modules
3 RTK engines
Multi-frequency
Supports all constellations (Including GPS + GLONASS + Galileo + BeiDou + QZSS)
632 channels
RTK^1,2
- Horizontal accuracy: 0.6 cm + .5 ppm
- Vertical accuracy: 1 cm + 1 ppm
Support for L-Band corrections

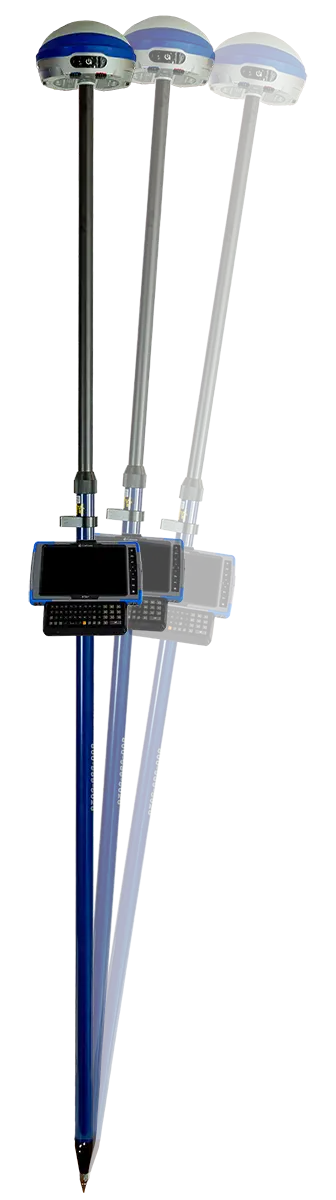

Tilt Compensation Accuracy with 2 m pole
0.7 cm @ 20 deg
0.9 cm @ 30 deg
1.2 cm @ 45 deg1.5 cm @ 60 deg

PROCESSOR, MEMORY AND DATA STORAGE
1.7 GHz Dual Cortex-A55 + 250MHz Cortex-M33
2GB DDR4 RAM, 16 GB eMMC storage
PORTS
USB for ethernet
2 x RS232
BATTERY
Dual removable lithium batteries, 25 Wh each
Operates up to 10+ hours on one charge
Hot-swappable, easily changeable in the field
Optimized for strong performance in cold temperatures
Excellent lifecycle performance
Storage life of more than 6 months
Ready for 10-18 V external power
Charge with external dual-bay charger or in-unit with USB-C
Battery indicators
PHYSICAL
Size: 6.3” (160mm) diameter, 3.75” (95mm) height
Weight: 2.98 lbs (1.35 kg) with 2 batteries
Durable, shock-resistant design
Materials: powder coated aluminum housing, plastic top cover, nitrile rubber o-ring, steel screws
WIRELESS CONNECTIVITY
Integrated Bluetooth® BT 2.1 + EDR
UHF radio, fully configurable with TX and RX capability
Wi-Fi 802.11 ax/ac/b/g/n, 2.4 GHz
Worldwide network coverage, LTE Cat 4, dual antennas
FIELD-TESTED RUGGED
IP67 for dust and water resistance
Operating Temperature: -40 F to 149 F (-40° C to 65° C)
Storage temperature: -40 F to 185 F (-40° C to 85° C)
Up to 100% humidity
Vibration: MIL-STD-810G, method 516.6
Mechanical Shock: MIL-STD-810G, method 514.6E-I
Unprotected drop: 2 m range pole drop on concrete, 1 m free drop on hardwood floor
Inflammability: Fulfills US, EU safety standards; UL recognized batteries
Chemical resistance: Cleaning agents, soapy water, industrial alcohol, water vapor, solar radiation (UV)

1 Depends on multipath environment, number of satellites in view, satellite geometry, and ionospheric activity
2 Depends also on baseline length

The package includes the following components for a single rover kit:

1 Carlson Viking GNSS Receiver
Viking batteries (2)
USB wall charger (dual USB with USB-A and USB-C)
Viking external battery charger (dual-bay)
Viking 5-pin cable for 12 V power supply and USB-C charging
Viking 7-pin cable USB cable to connect to PC
UHF 400 MHz UHF antenna
UHF 900 MHz UHF antenna
UHF cable extension bracket
5/8” quick release adapter
GPS Tribrach w/ Optical Plummet (Included only with Base and Rover Package)
Hard Case

Download Carlson Viking Brochure

Download Carlson Viking Whitepaper

Description

Product Description:

Carlson Viking Highlights:

American Made: Proudly assembled in Maysville Kentucky with components from USA and Europe, the Viking is completely Carlson designed and engineered
Triple-Fix: Dual GNSS RTK modules and three separate RTK engines, providing not just exceptional horizontal and vertical accuracy, but essentially eliminating false fixes
Tilt Compensation: Industry-leading, calibration-free tilt compensation delivers impressive precision even when surveying at up to 60° of inclination
Dual hot-swappable batteries: 10+ hours of runtime
Rugged & ready: IP67-rated, MIL-STD-810G tested

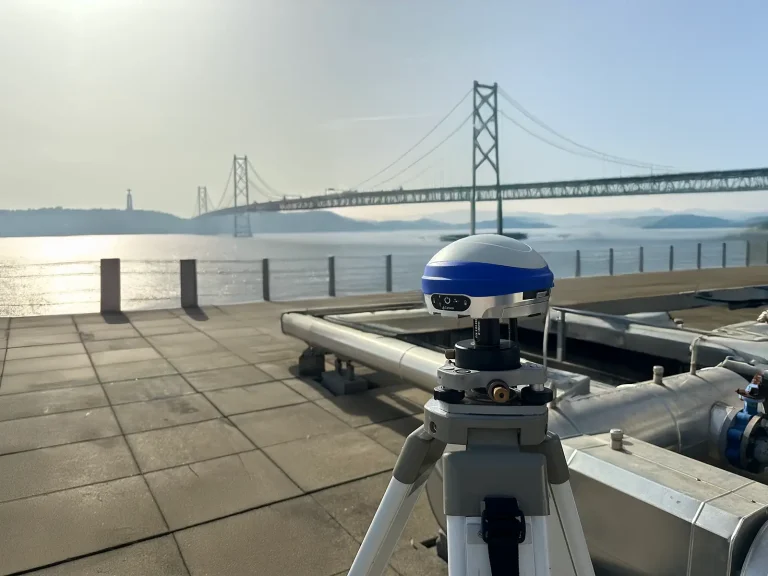

Versatile & efficient: Use as a base or a rover with communication options including 400 & 900 MHz radio, internal mobile data modem, BlueTooth, and Wi-Fi

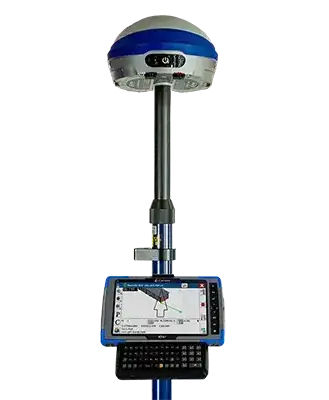

Carlson SurvPC: The Viking seamlessly integrates with Carlson SurvPC, and features a powerful web-based UI for remote setup and monitoring

Cutting-Edge Performance and Connectivity

The Viking supports 632 channels, enabling simultaneous tracking of all major satellite constellations, including GPS, GLONASS, BeiDou, Galileo, QZSS, and NavIC (IRNSS).
Equipped with a 4G cellular modem and UHF radio, the Viking ensures robust internet connectivity and reliable RTK data transmission. Configure it as either a Rover or Base Station, providing unmatched flexibility.

Advanced Technology for Every Challenge

At its core, the Viking features the Gama RTK Navigation engine, paired with a sophisticated Web UI for effortless management and upgrades. Its innovative RTK Triple-Fix technology ensures high-fidelity positioning with virtually 100% reliability, guaranteeing precision in every task.
Its ruggedized antenna is engineered for extreme conditions and meets IP67 standards, making it an ideal choice for demanding environments.

Versatility Across Industries

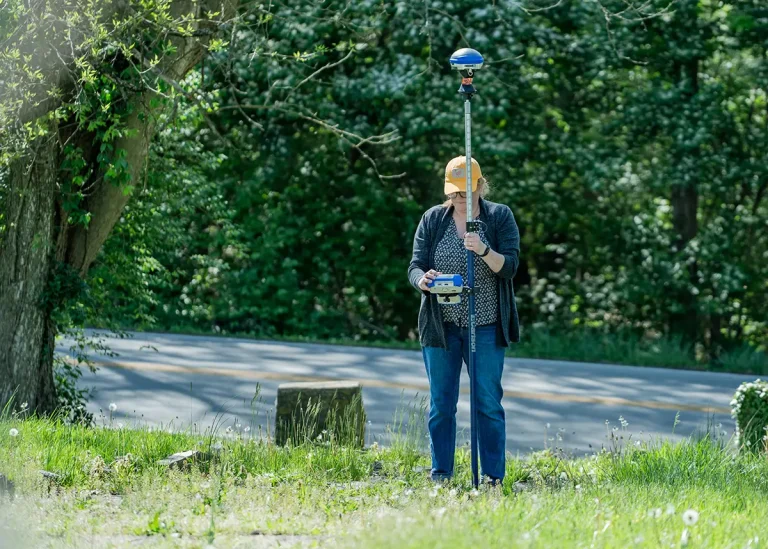

Whether you’re conducting land or marine surveys, GIS mapping, construction projects, or advanced RTK applications, the Viking is your trusted partner.

Precision, Performance, and Reliability

Combined with Carlson’s SurvPC field software, the Viking is more than a positioning system—it’s a powerful tool designed to enhance your efficiency, streamline your workflows, and deliver unparalleled accuracy.
Viking communication interfaces:
