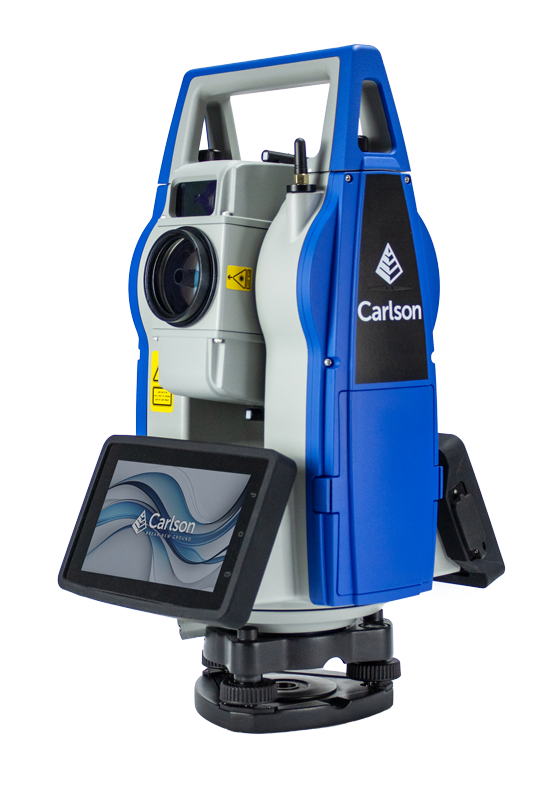

Carlson CRT Robotic Total Station

Name: Carlson CRT Robotic Total Station
Brand: Carlson
SKU: 5439
Availability: InStock

Price range: $25,500.00 through $27,500.00

The Carlson CRT Robotic Total Station in the latest generation in ground-breaking survey instrumentation, brought to you from the company that introduced the legendary BRx7 GNSS system. Carlson is located in the U.S. State of Kentucky, and is renowned for their industry-leading customer service. They are available to answer any questions that come up and they know their products backwards and forwards.

See Full Specifications

Accuracy

Clear

SKU: N/A Category: Carlson Field Instruments Brand: Carlson

View full specifications:

Description

Carlson CRT Overview

The Carlson CRT is a highly accurate and fast Android-based robotic total station. Featuring a rotation speed of 180°/sec and an EDM accuracy of 1 mm + 1 ppm, and a range of up to 1000 m without a prism (800 m on 2″ model), the CRT is available in two versions, 1” and 2”. For both models, the quietness and smoothness in prism searches and rotations are among the most observed and appreciated features.

The CRT Robotic total station boasts a rotation speed of 180°/sec, making it one of the fastest in its product category. Not only is it speedy, but it is also impressively quiet, with noise levels among the lowest in its class. Additionally, the Tdrive technology, with a very high speed motor, allows for high-speed pursuit, even with a prism installed on moving vehicles. Not using gear technology ensures frictionless movement, greater durability, and less maintenance.

This instrument is top-of-the-line. Its detailed engineering allows for exceptional performance, achieving an accuracy of 1 mm + 1 ppm with a prism, at a measurement speed of significantly less than one second.

CRT guarantees high accuracy long range measurements: up to 1000 m in reflectorless mode (800 m for 2″ model) and up to 6000 m using a single prism, with millimeter accuracy.
